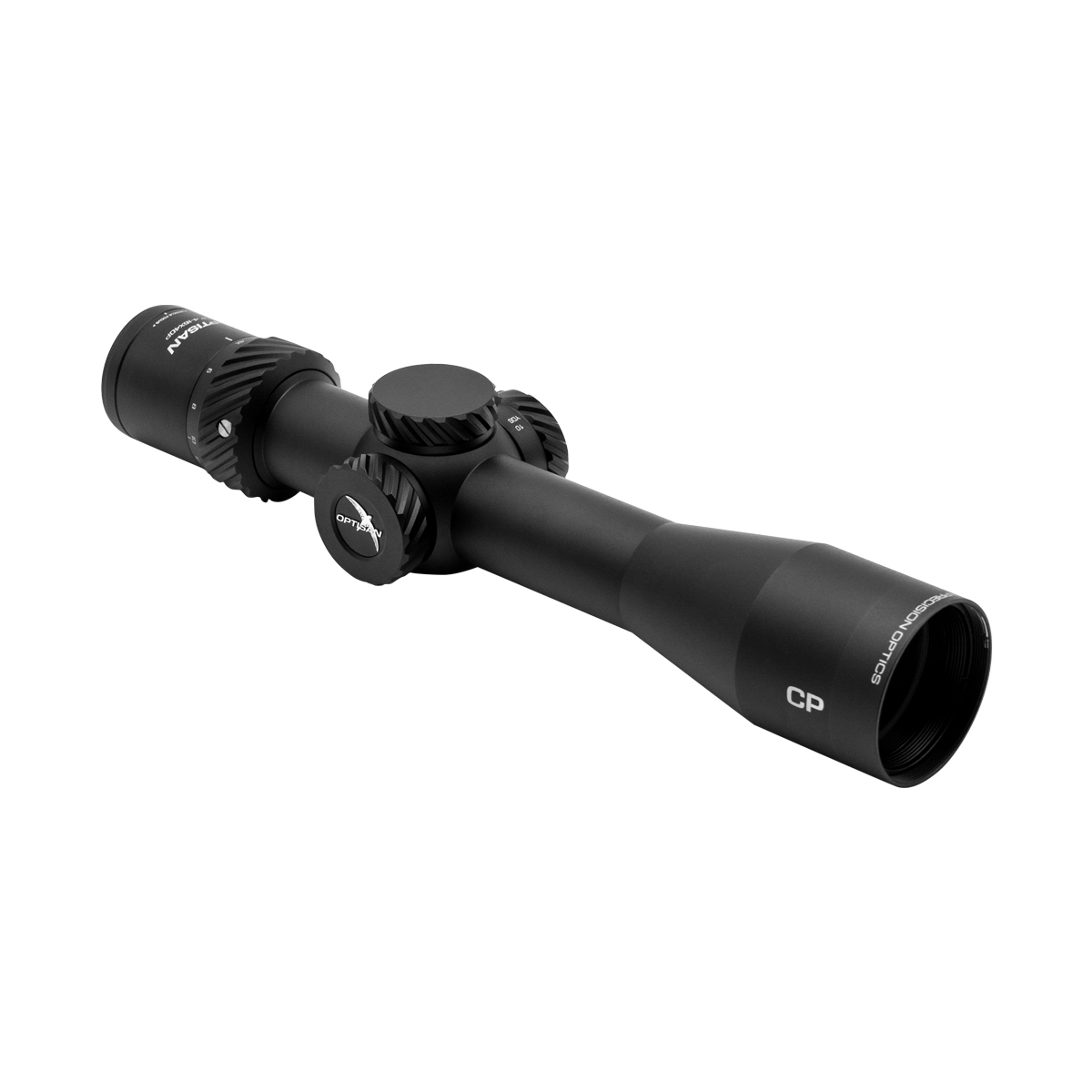

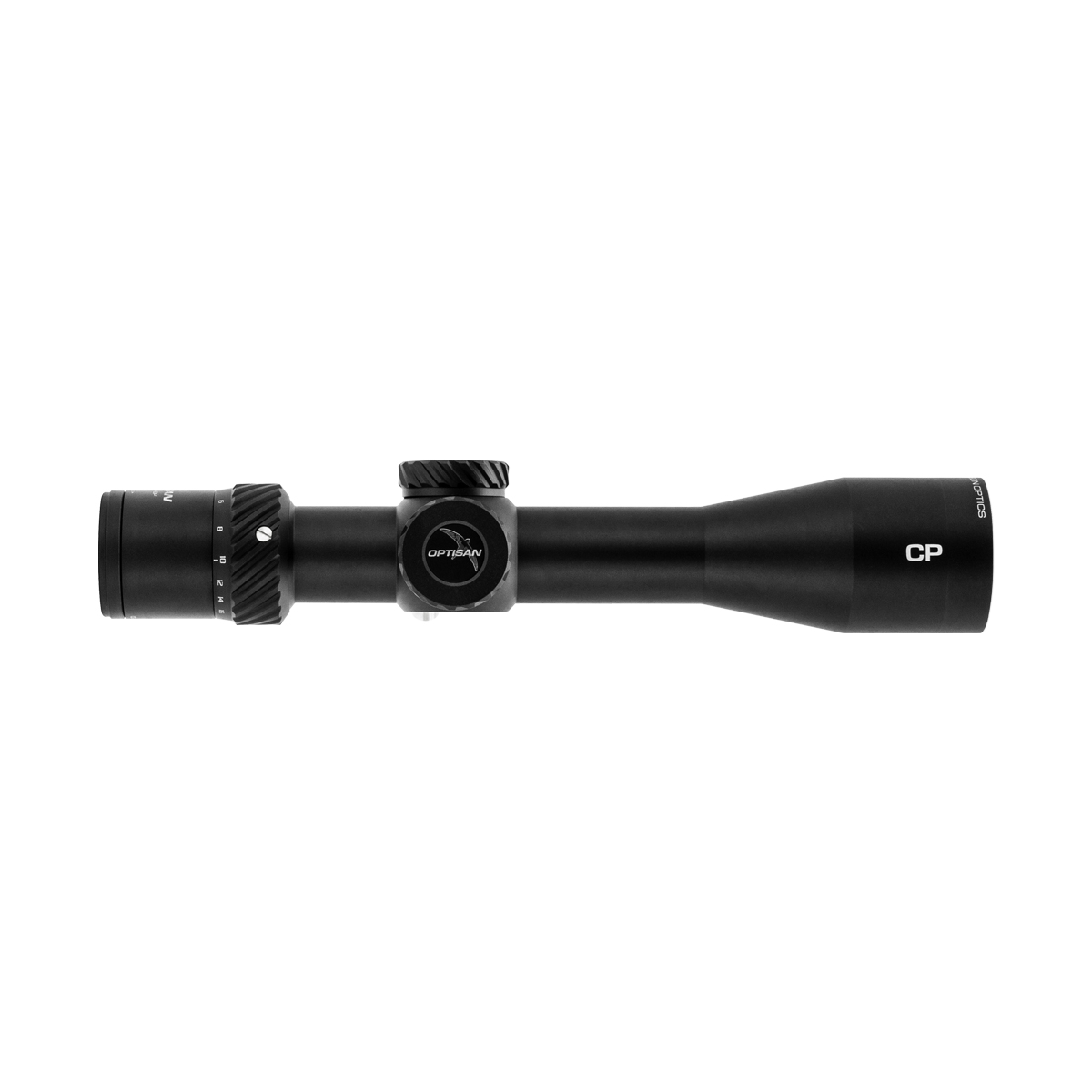

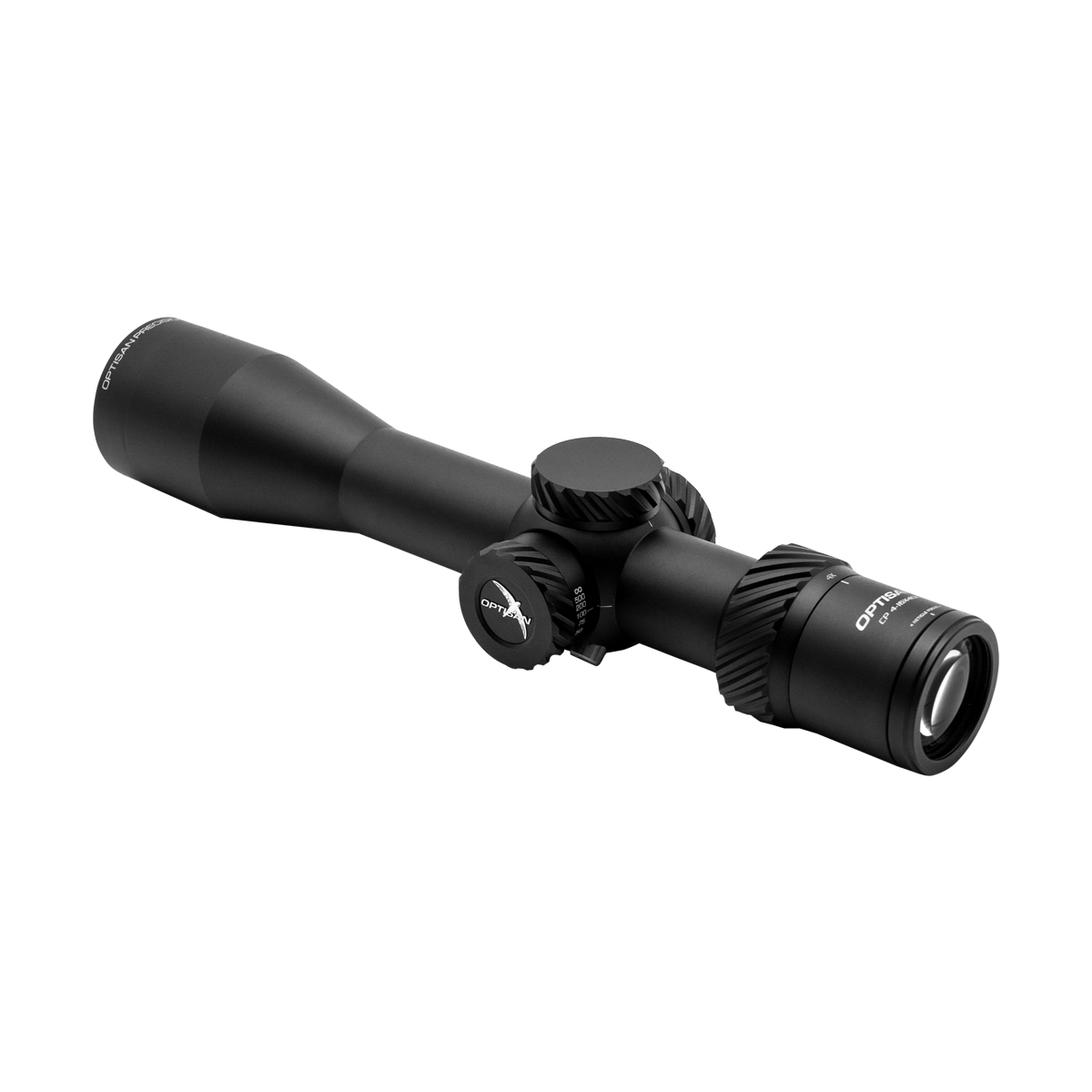

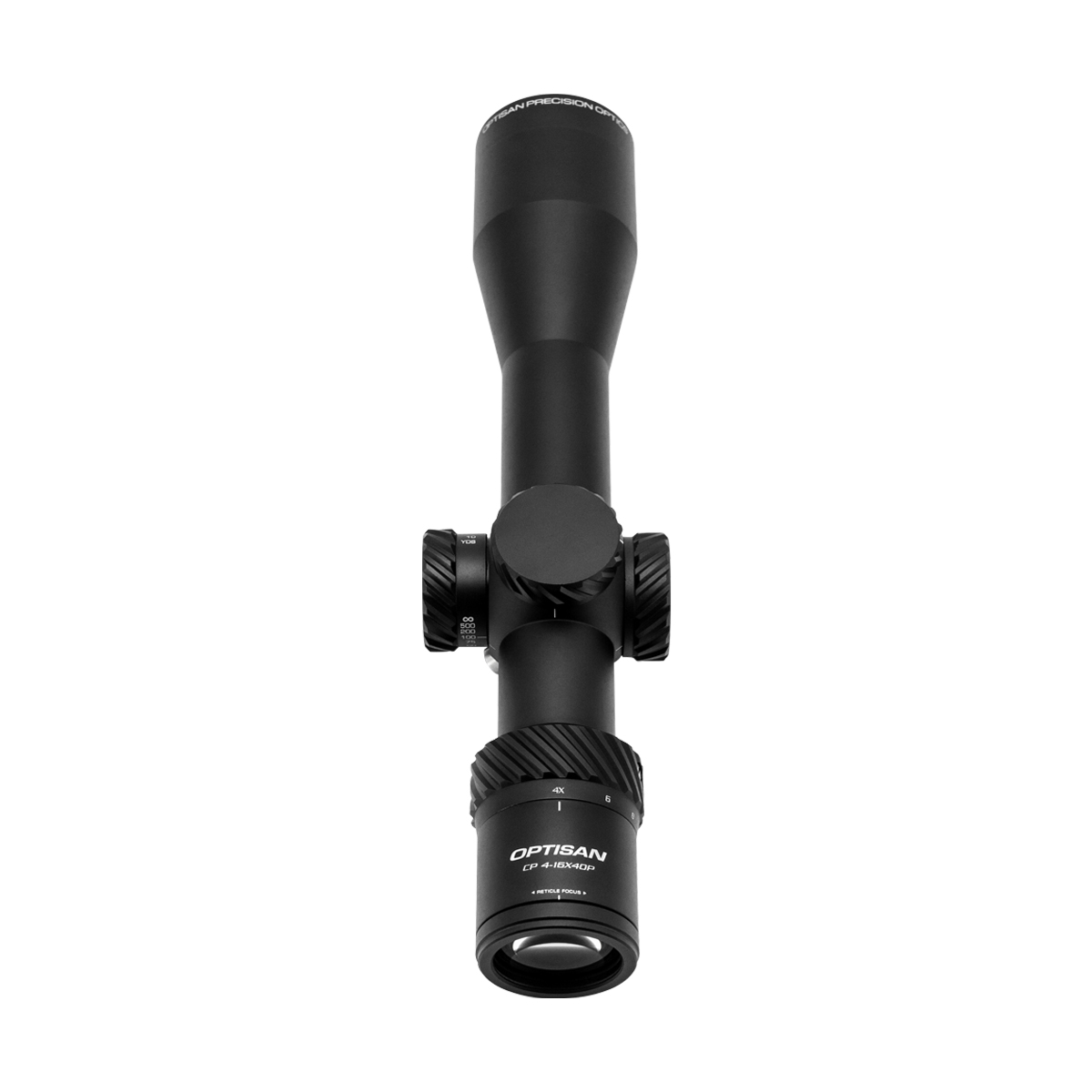

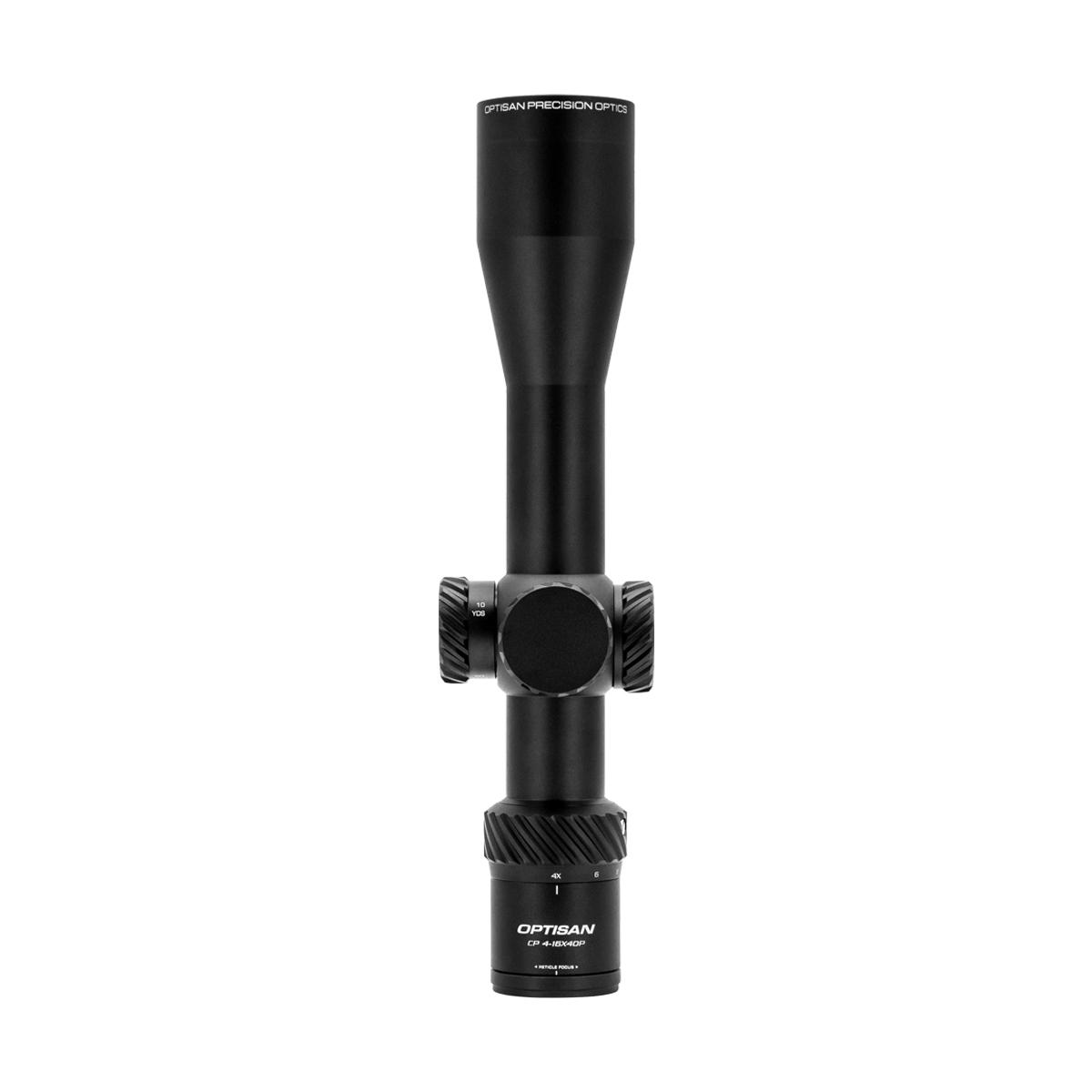

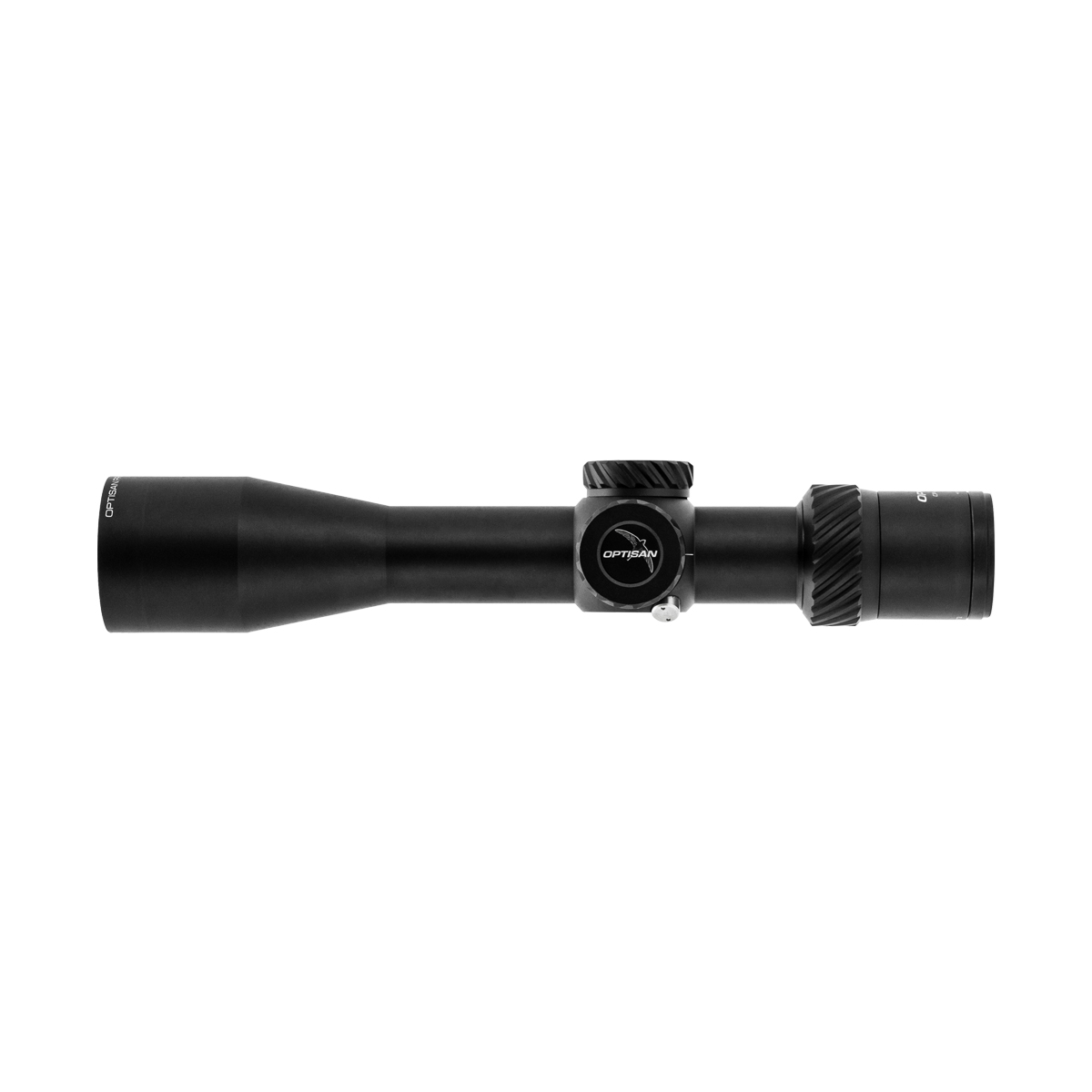

Optisan CP 4-16X40F1

Discover the Optisan

CP 4-16X40F1: Your Ultimate Precision Optics Solution. Engineered for performance and built to withstand the most demanding conditions, the Optisan CP 4-16X40F1 delivers unmatched accuracy and confidence for every shot. Explore its exceptional features and elevate your shooting experience to new heights. Perfect if you want a compact scope on the Leshiy 2 Short.

Compact design

At just 25.4 cm long and weighing less than 0.48 kg, the CP is the ideal companion for compact and lightweight rifles.

Minimized Parallax error

Equipped with a 32mm objective lens, the CP effectively reduces the impact of Parallax error, resulting in a minimal shift of impact as you change your head position or distance to the target.

Parallax adjustment range

10 yards up to 500 yards to infinity

Springer Rated

Champion shooters have field-tested this rugged riflescope for over a year on a springer rifle, proving its ability to withstand double-direction recoil of up to 6000j post-barrel muzzle velocity.
Centerfire rifles up to .338 Lapua

Sleek Design

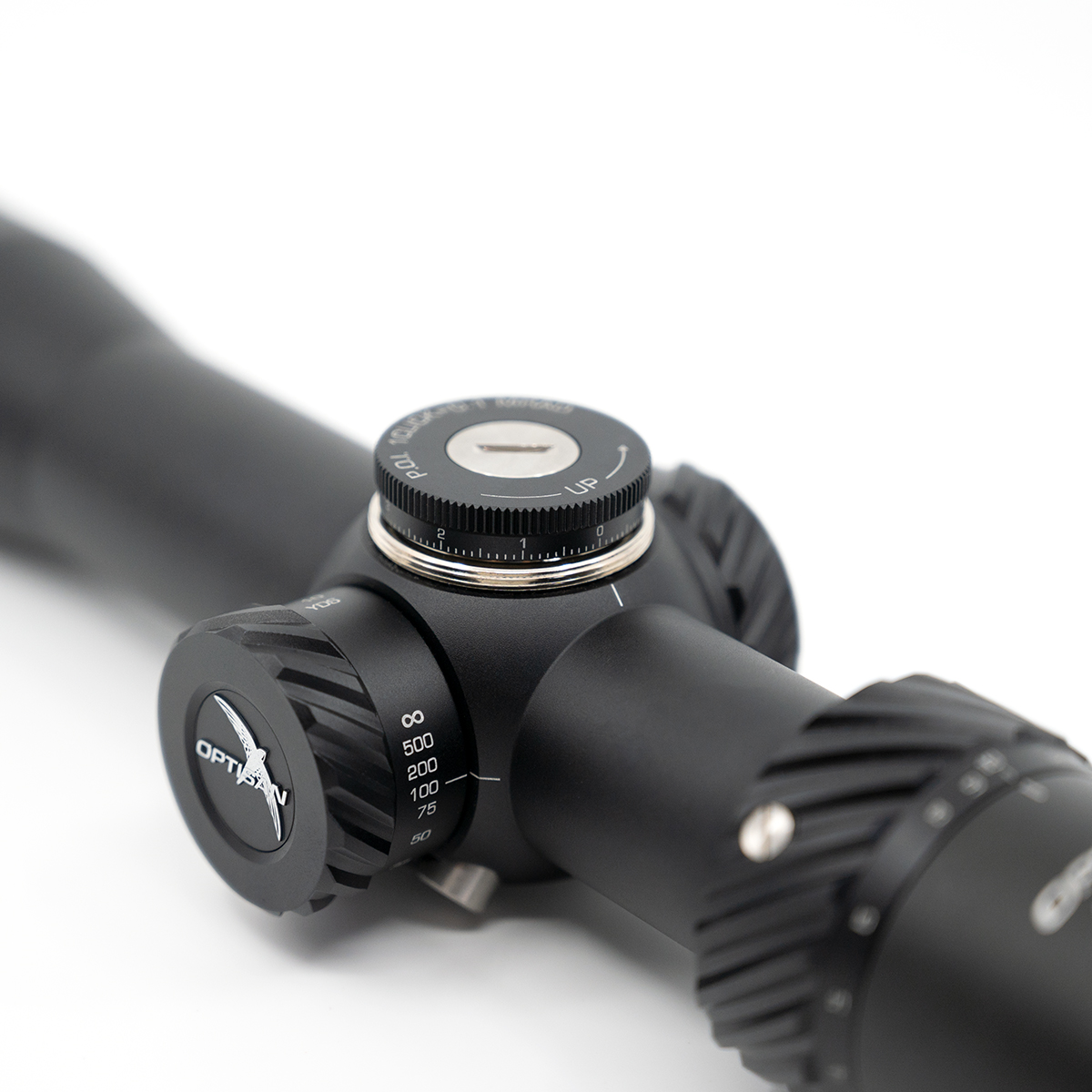

low-profile turret
All stainless steel,
low-profile turret with
10 MRADs of adjustment per turn.
No obstruction of view when the night vision eyepiece is attached.

Reticle

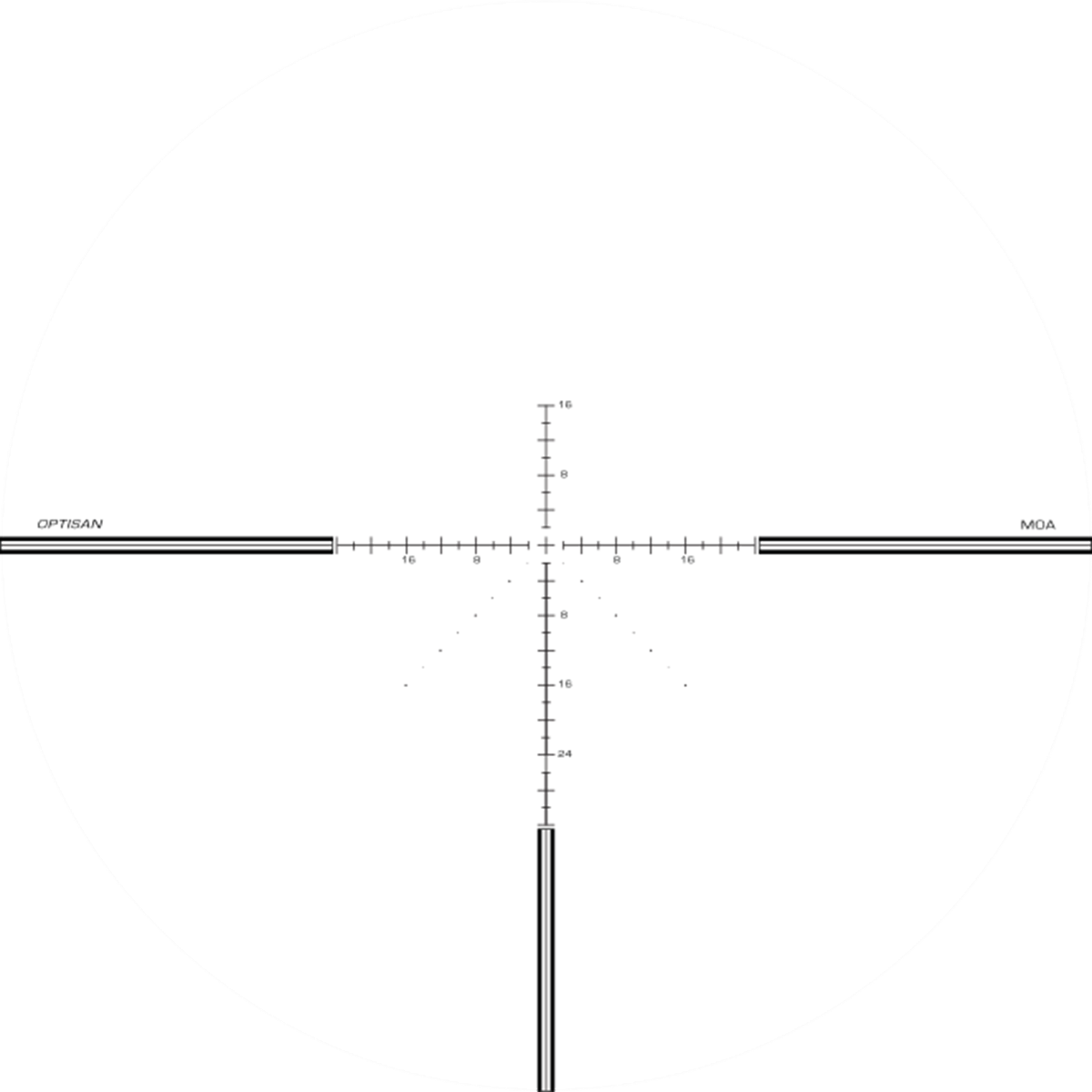

MOA

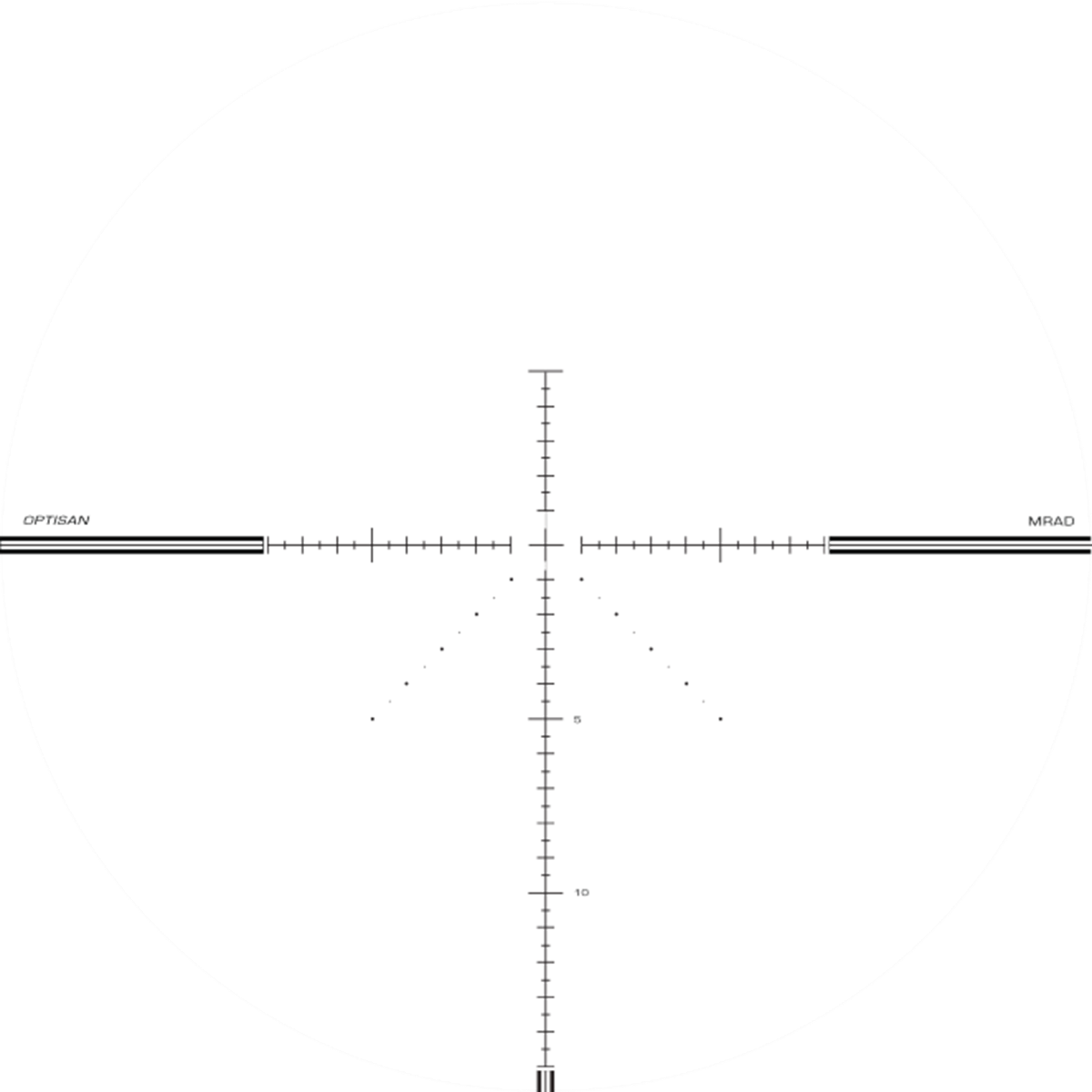

MRAD

Price:

$569.99

Add to Cart

Technical

Magnification: 3X-12X
Objective Diameter 32mm
Outer dia. Objective 40mm
FOV ft@100yds 36ft - 9ft
Eye relief 3.5'' - 3.3"
Eye relief 88.9mm - 83.8mm
Exit Pupil 10.6mm - 2.6mm
Diopter Range +/- 2.0 dpt
Parallax Adjustment 10 yds - infinity
Coating: Fully multi-coated
Tube Construction One-piece tube, aircraft aluminum
Elevation Adjustment 0.1 MRAD or 1/4 MOA
Windage Adjustment 0.1 MRAD or 1/4MOA
Turret Style Low profile, toolless resettable zero
Turret Style Low profile, toolless resettable zero
Travel Per Rotation 10 MRAD or 25 MOA
Elevation adj. range ≥ 18 MRAD or 60 MOA
Windage adj. range≥ 18 MRAD or 60 MOA
Eye Piece Diameter 1.55''
Eye Piece Diameter 39.5mm
Eye Piece Length 1.08''
Eye Piece Length 27.55mm
Mounting Length rear 55.70mm
Mounting Length Front 30.00mm
Tube Dia. 30mm
Length 10.5''
Length 242mm
Weight 487g
Weight 18oz
Surface Finish Matte Black
Functional temperature -20 ~ 50 degrees Celsius
Storage temperature -20 ~ 50 degrees Celsius
Submersion tightness IPX7
Focal Plane First Focal Plane
Illumination Non-illuminated
