Prismatic Scope

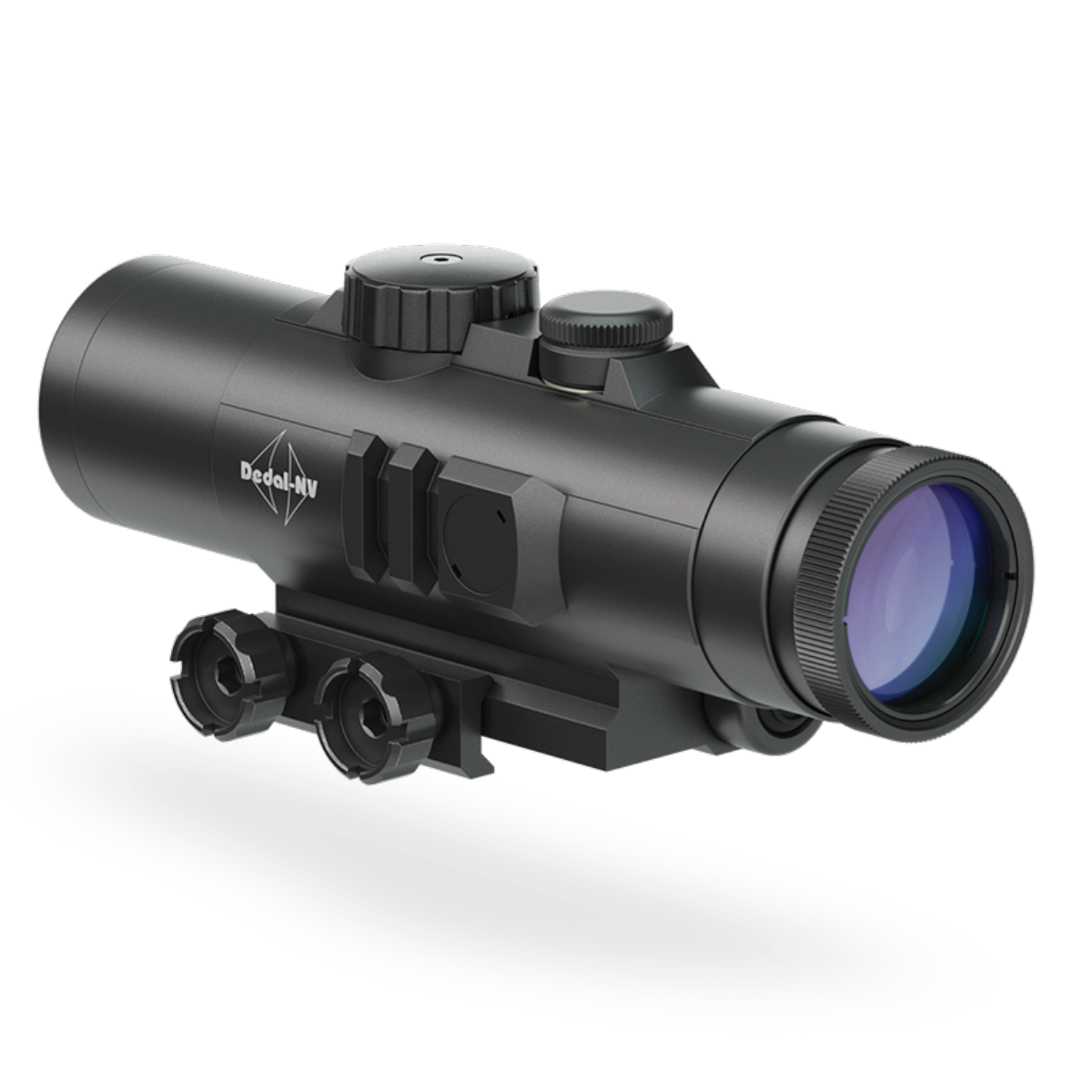

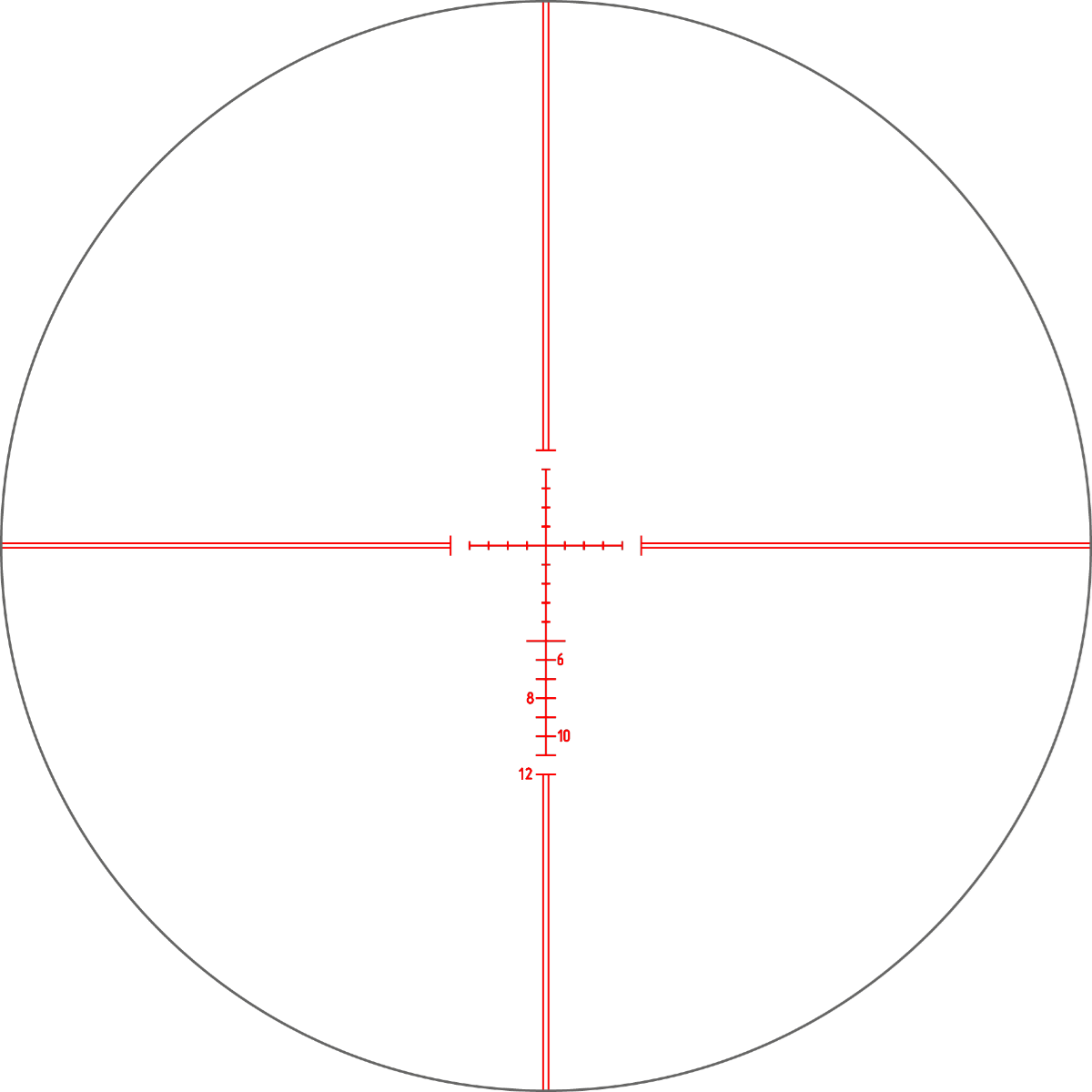

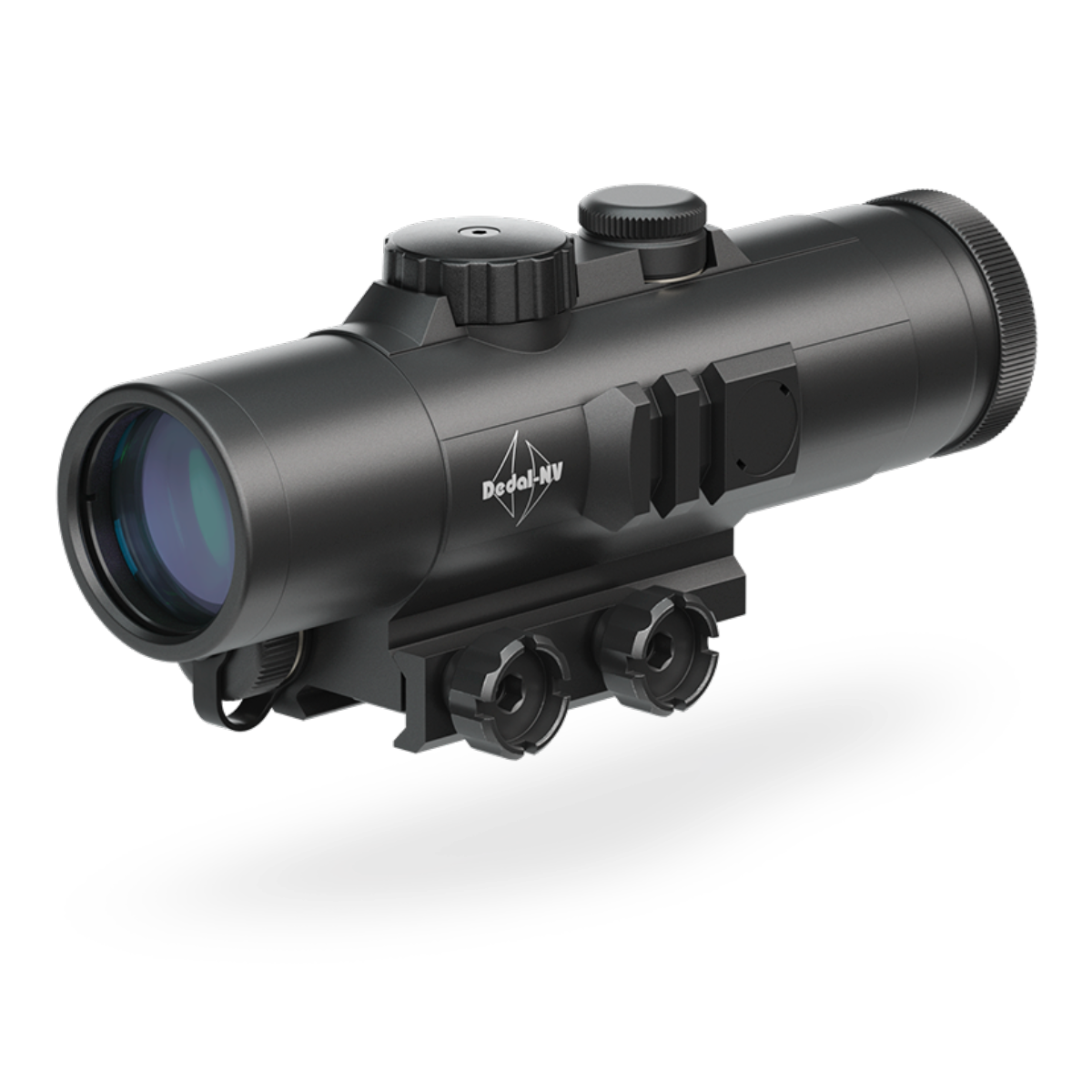

EDgun Dedal Stalker. EDgun Ltd, in cooperation with Dedal-NV, developed a prismatic scope ideal for quick target acquisition for serious field use. This scope is based on the battle-tested DK9 prismatic scope that often sits on the AK-Alpha. EDgun helped design a reticle that would be useful not only on an airgun but also on any centerfire rifle, or for shooters looking for a compact, lightweight, forgiving parallax scope.
Magnification -6×
Angular Field of View, m/100m (degrees)-4.9 (2.8)
Objective Lens Clear Aperture, mm-32
Exit Pupil, mm-5.3
Parallax Adjustment Range, m, from 4 to ∞
Eye Relief, mm-90
Eyepiece Dioptre Adjustment from -3 to +2
Adjustment Step (Click), mrad-0.1
Elevation Adjustment Range, mrad-30
Windage Adjustment Range, mrad-±15
Power Source: One AA battery
Power Voltage, V-1.5
Battery Lifetime Depending on Brightness, at 23 °C, hours from 500 to 5000
Dimensions, (LxWxH), mm-160×55×70
Weight, kg-0.42
Operational Temperature, °C-from -40 to +50
Operational Humidity, %-up to 98
IP Rating- IP67
